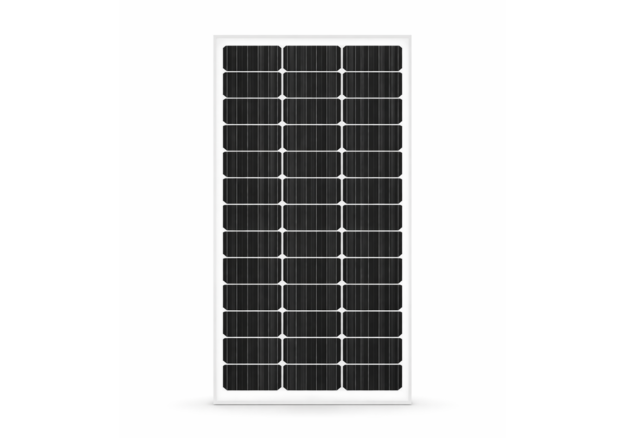

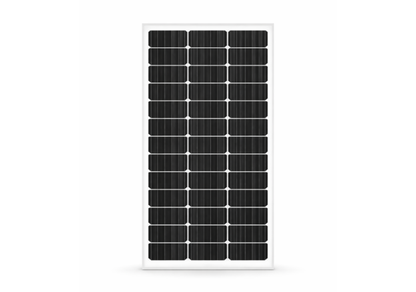

100W Rigid Solar Panel (R100)

Reliable 100W rigid solar panel designed for vehicle, fleet, and fixed off-grid power applications.

SHORT DESCRIPTION

The MOENERGY R100 is a durable 100W rigid solar panel engineered for vehicles, fleets,
and stationary installations. With standard MC4 output and robust construction, it
integrates easily into common solar charging and battery maintenance systems.

KEY FEATURES

• 100W high-efficiency monocrystalline solar cells

• Rigid glass and anodized aluminum frame for durability

• Standard MC4 output connectors

• Designed for vehicle, fleet, and fixed off-grid applications

• Weather-resistant construction for outdoor deployment


TECHNICAL SPECIFICATIONS

• Rated Power (Pmax): 100W

• Cell Type: Monocrystalline

• Number of Cells: 30 (3 × 10)

• Module Efficiency: 22%

• Maximum Power Voltage (Vmp): 17.2V

• Maximum Power Current (Imp): 5.8A

• Open Circuit Voltage (Voc): 20.4V

• Short Circuit Current (Isc): 6.6A

• Maximum System Voltage: 1000V DC

• Max Series Fuse Rating: 15A

• Operating Temperature: -30°C to 95°C

• Power Tolerance: ±3%


MECHANICAL SPECIFICATIONS

• Panel Type: Rigid

• Dimensions: 37.8 × 22.8 × 1.2 in (960 × 580 × 30 mm)

• Weight: 13.7 lb (6.2 kg)

• Front Glass: 3.2 mm tempered glass

• Frame: Anodized aluminum

• Junction Box Rating: IP65

• Cable Length: 35.4 in (900 mm)

• Connector Type: MC4


CERTIFICATIONS & COMPLIANCE

• FCC

• CE

• RoHS


TYPICAL APPLICATIONS

• Fleet and service vehicles

• RVs, trailers, and campers

• Industrial and monitoring equipment

• Fixed off-grid solar installations
