Flexible Solar Panel Platform
Flexible Solar Panel Platform
Not sure if this is the right panel?
Scalable, Lightweight Solar Solutions for OEM, Fleet, and Specialty Deployments
MOENERGY’s flexible solar panel platform is designed for applications where low weight, surface conformity, and installation flexibility are critical. Built on high efficiency monocrystalline cells, this platform supports scalable power configurations and multiple output options for OEM, fleet, and specialty programs.
Why Flexible Solar Panels
- Lightweight construction for weight-sensitive applications
- Ability to conform to curved or uneven mounting surfaces
- Ultra-thin profile for low-visual-impact installations
- Flexible mounting using adhesives, fasteners, or hybrid methods
Platform Example: 100W Flexible Solar Panel
The 100W flexible panel serves as a reference configuration within this scalable platform.
Electrical characteristics include:
- Rated power: 100 W
- Maximum power voltage (Vmp): 18 V
- Maximum power current (Imp): 5.56 A
- Open circuit voltage (Voc): 21.6 V
- Module efficiency: 22.6%
- Power tolerance: ±3%
Mechanical and environmental features include:
- Ultra-thin flexible construction (~0.1 in / 3 mm)
- Lightweight design (~4.2 lbs / 1.9 kg)
- Operating temperature range: –30°C to 95°C
- IP65-rated junction box with MC4 output
- White backsheet for improved thermal stability
Scalability & Customization Options
- Multiple wattage configurations and cell layouts
- Connector and output options (MC4, SAE, Anderson)
- Custom cable lengths and harness designs
- Private labeling and packaging customization
- Program-specific compliance alignment

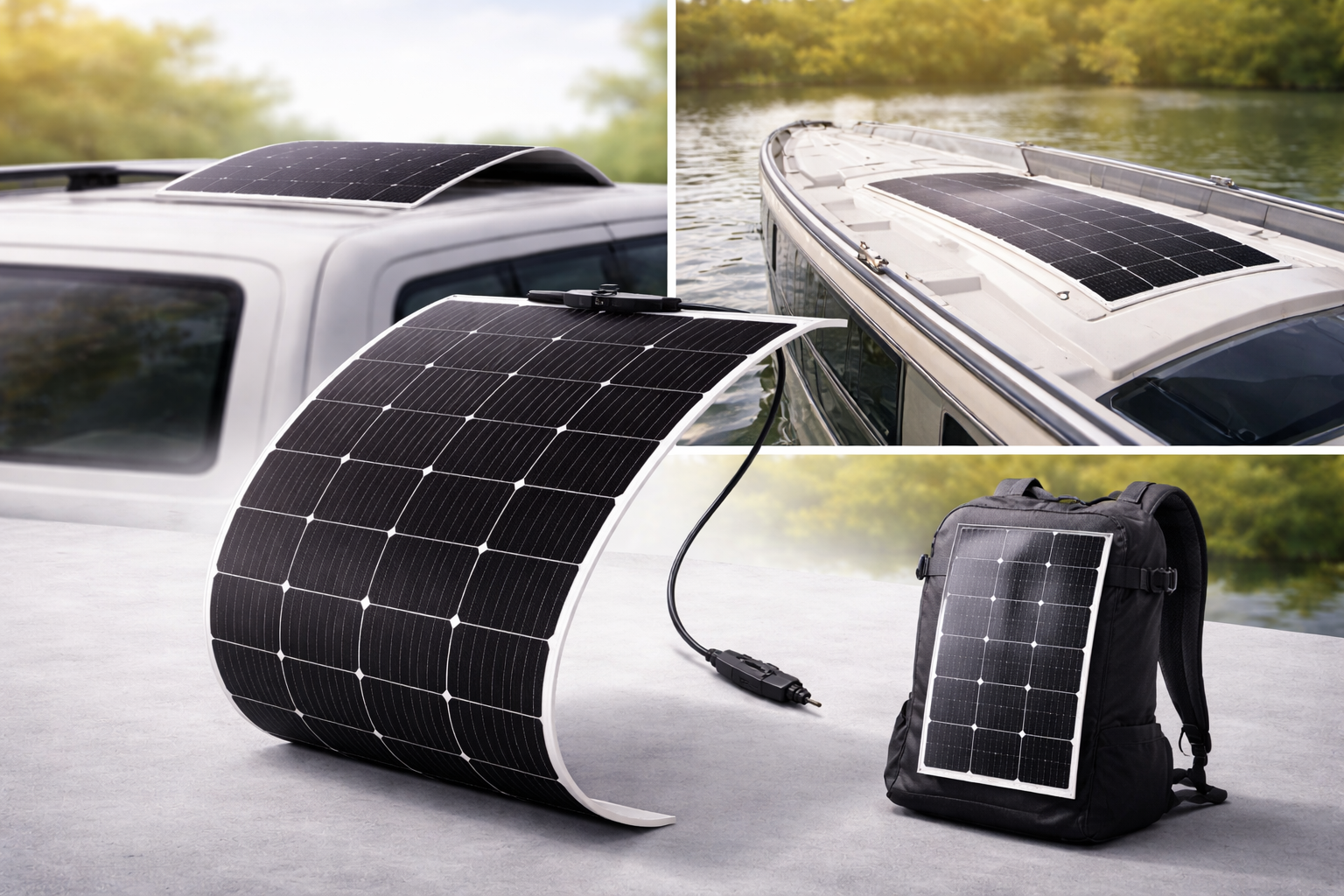

Intended Applications
- Vehicle roofs and curved surfaces
- RVs, vans, and trailers
- Portable and deployable systems
- Weight-sensitive or low-profile installations
