Aluminum-Backed Solar Panel Platform
Aluminum-Backed Solar Panel Platform
Not sure if this is the right panel?
Scalable Product Platform for OEM, Fleet, and Industrial Integration
MOENERGY’s aluminum-backed solar panel platform is engineered for applications that require direct mounting, structural integration, and long-term durability. Unlike polymer-backed panels, the aluminum backsheet provides a rigid, thermally efficient base that simplifies attachment across vehicle, industrial, and enclosure-based deployments.
Why Aluminum-Backed Panels
- Direct mechanical mounting without external frames
- Improved heat dissipation for stable power output
- Low-profile construction for integrated installations
- Compatibility with screws, rivets, brackets, and industrial adhesives

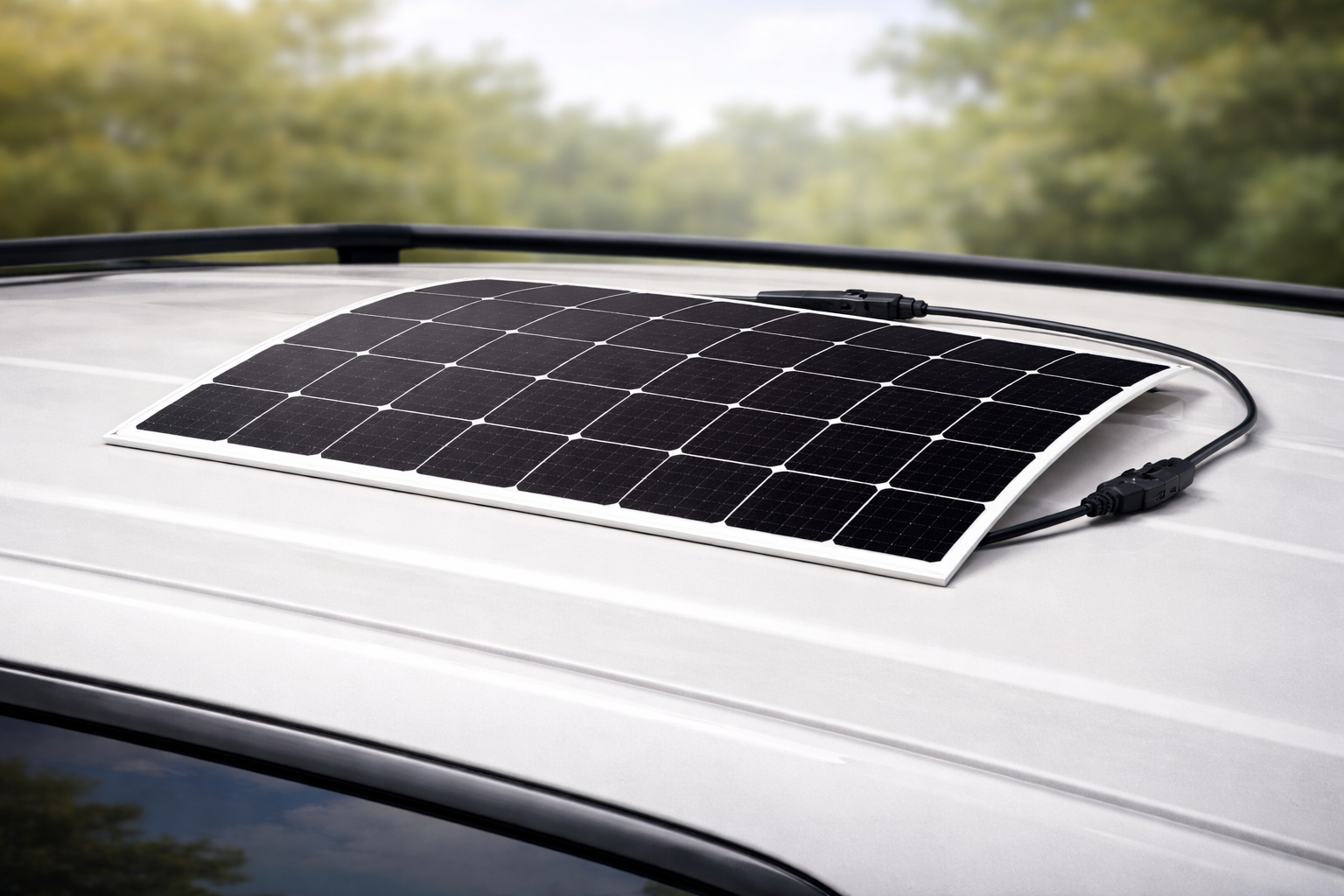

Platform Example: 100W Aluminum Solar Panel
The 100W aluminum-backed panel illustrates the capabilities of this platform and serves as a baseline configuration for scalable and custom programs.
Key electrical characteristics include:
- Rated power: 100 W
- Maximum power voltage (Vmp): 18 V
- Maximum power current (Imp): 5.56 A
- Open circuit voltage (Voc): 21.6 V
- Module efficiency: 22.6%
Mechanical and environmental features include:
- Aluminum backsheet construction
- Ultra-thin 0.2 in (25 mm) profile
- Operating temperature range: -30°C to 95°C
- IP65-rated junction box with MC4 outputs
Scalability & Customization Options
This aluminum-backed platform supports scaling and customization across multiple dimensions:
- Power levels and cell layouts
- Connector and cable configurations (MC4, SAE, Anderson)
- Mounting hole patterns or mounting zones
- Private labeling and custom documentation
- Program-specific validation and compliance alignment
Intended Applications
- Vehicle and trailer-mounted power systems
- Industrial equipment and enclosures
- Fleet electrification and auxiliary power
- Remote and field-deployed systems
Where This Platform Lives on the Site
This aluminum-backed solar panel should be presented as a platform within:
It may be referenced (but not duplicated) on:
Reference Specification
Specifications summarized from the Aluminum 100W Solar Panel datasheet (Model A100, aluminum backsheet).
