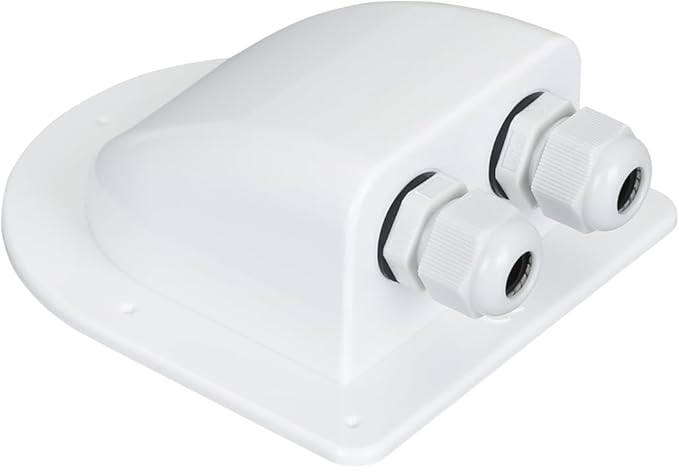

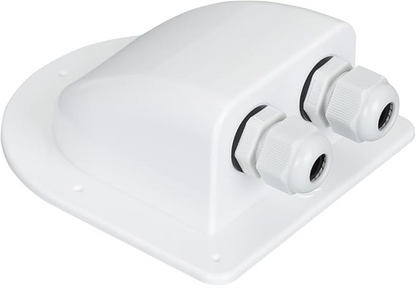

Rooftop Junction Box – IP65, Double Entry

Weather-resistant rooftop junction box designed to protect and route cables in solar and outdoor installations.

SHORT DESCRIPTION

The MOENERGY Rooftop Junction Box is a compact, UV-resistant enclosure designed for secure cable routing and protection on rooftops and outdoor surfaces. Featuring IP65 ingress protection and dual cable entry, it ensures reliable performance in harsh environmental conditions.

KEY FEATURES

• IP65 protection against dust and water ingress

• UV-resistant ABS/PC housing for long-term outdoor exposure

• Double cable entry for flexible routing

• Pre-drilled mounting holes for secure installation

• Compact, low-profile design for rooftop use


TECHNICAL SPECIFICATIONS

• Ingress Protection: IP65

• Material: UV-resistant ABS / Polycarbonate

• Color: White

• Cable Entry: Double entry

• Mounting: 3 screw holes

• Dimensions (L×W×H): 127.8 × 93 × 39.5 mm

• Operating Temperature: -40°C to +85°C

• UV Resistance: Yes

• Flammability Rating: UL94-V0 (if applicable)


MATERIALS & CONSTRUCTION

• Housing: UV-stabilized ABS or Polycarbonate

• Screws: Stainless steel (corrosion-resistant)

• Sealing Gasket: EPDM or Silicone rubber


TYPICAL APPLICATIONS

• Solar rooftop cable protection

• Outdoor sensor and control enclosures

• Telecommunications junction points

• CCTV power and signal distribution


CERTIFICATIONS & COMPLIANCE

• IEC 60529 (IP65)

• RoHS compliant

• REACH compliant
